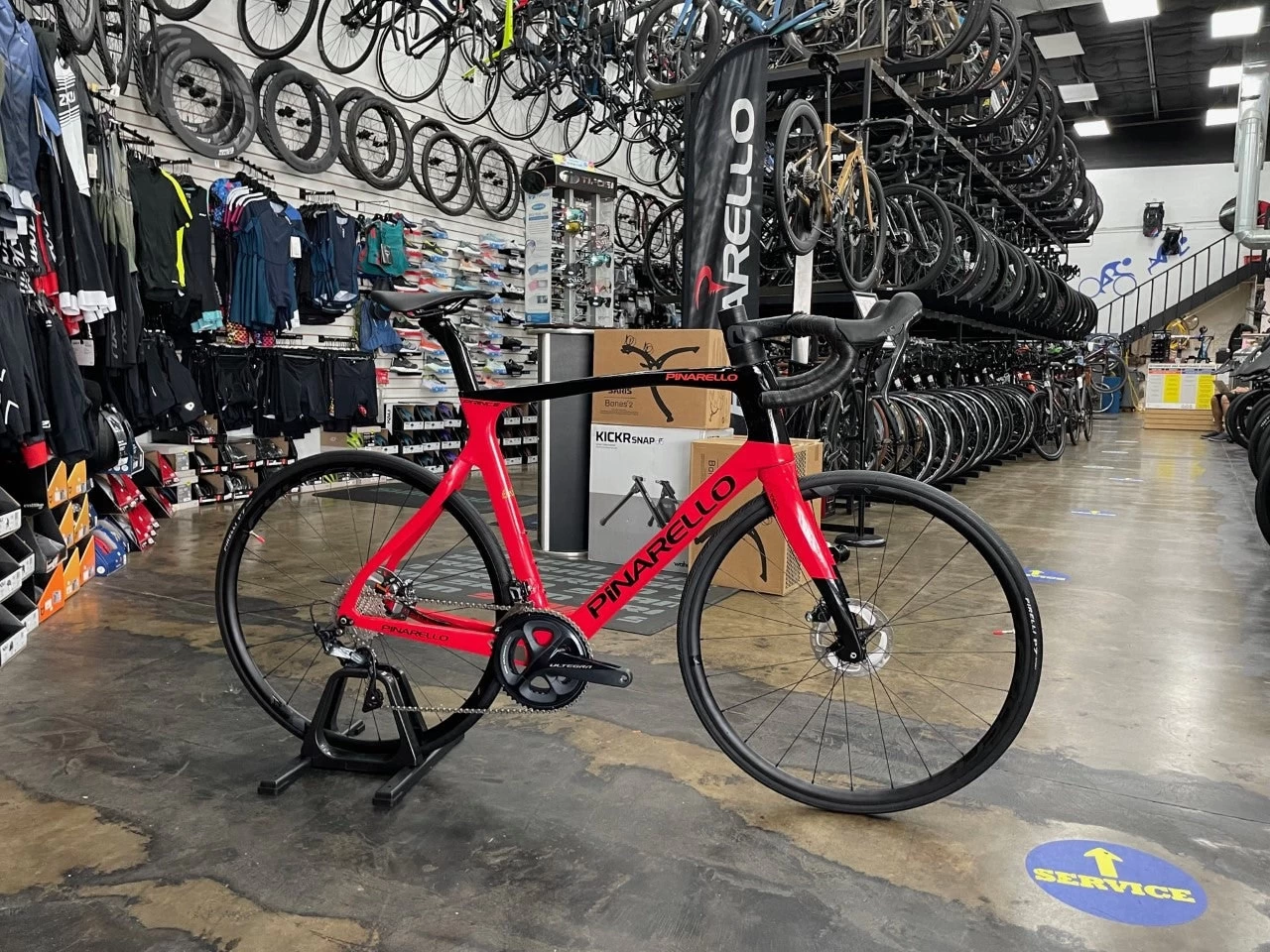

Pinarello Prince Shimano Ultegra – Radiant Red 2023

POSITIVE AND PURE EMOTION

We asked our designers and engineers to transfer the amazing riding experience of DOGMA F12 to the new PRINCE.
The result is a bicycle with technical characteristics and performance standards that outperform many high end Road bikes on the market today, and the reason that the PRINCE  is a real alternative to DOGMA F12
The Prince inherits the DOGMA F12 total cable integration system, called TiCR, which enables a significant aerodynamic advantage.
INNOVATION: ASYMMETRIC FRAME ONDA FORK FORK FLAP ITALIAN BB TiCR FLATBACK PROFILE RACE GEOMETRY CARBON T700 UD NO VISIBLE CABLES: In conjunction with our exclusive parts brand MOST, a new series of TiCR™ ready handlebars and stems have been created, ready to accommodate the integrated cable routing. DESIGN: Even the design of the frame has improved, and the holes for the cable routing have completely disappear increasing the aerodynamics and rigidity of the frame itself. NEW FORK: The new Prince fork has undergone significant changes: integration with the chassis as done in the DOGMA F12, more streamlined, improved aerodynamic flow, and ForkFlap™ to decrease drag around the wheel attachment. DOWNTUBE: Another important development has been done on the down tube, which is completely derived from Dogma F12. The use of the concave tube and the new shapes near the bottom bracket are all aimed at canceling the aerodynamic impact of the two bottles. True to Pinarello philosophy, the down tube is moved to the right to increase the asymmetrical effect of the frame. CHAINSTAY: Important work has also been done on the chainstay to increase the responsiveness of the frame, a major effect you will especially notice this when you are riding out of the saddle.


GEOMETRIES

CE
CC
L
A [°] B [°] P
T
D
R
G
REACH
STACK

425
430
505
74.5
71
408
106
67
52
373
356
513

440
460
515
74.25
71.75
408
108
72
52
373
364
523

470
490
525
74
72.25
408
116
72
52
373
370
532

495
515
535
73.75
72.75
408
124
72
47
373
376
543

510
530
545
73.5
72.75
408
135
72
47
373
380
554

525
545
557
73.25
73
410
151
72
47
373
385
570

540
560
565
73.25
73
410
168
72
47
373
388
586

560
580
580
72.75
73.25
410
193
67
47
373
392
606

590
600
600
72.5
73.25
410
231
67
47
373
398
642

CE: SEAT TUBE CENTER – END, CC: SEAT TUBE CENTER – CENTER, L: TOP TUBE CENTER – CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

ALL COMPONENTS

FRAME SET

FRAME
torayca t700 ud, ticr™ cable routing, italian bb, uci approved

FORK
prince onda fork with forkflap™, 1.5′ upper and lower steerer

DRIVETRAIN

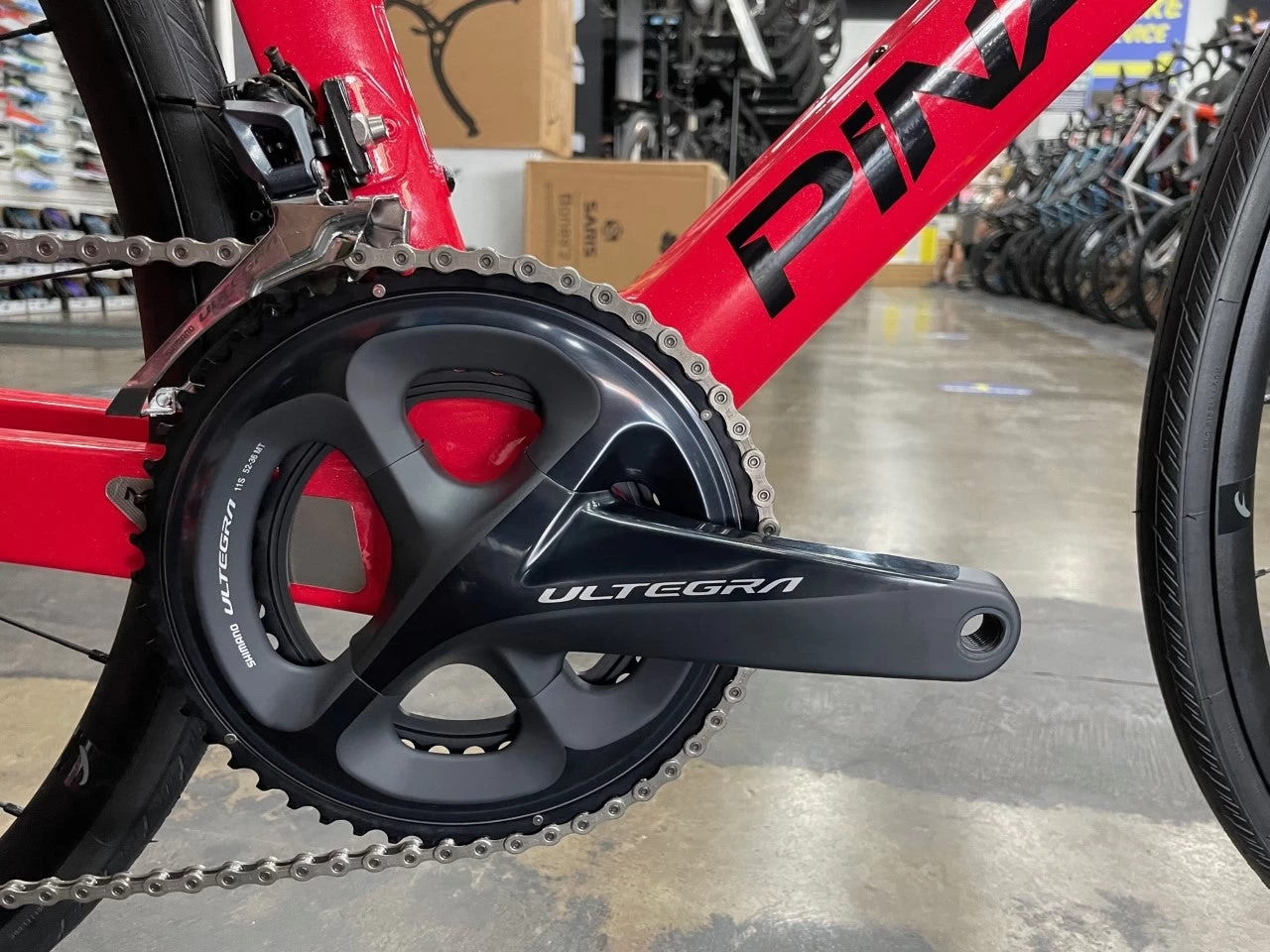

CRANKSET AND CHAINRINGS
shimano ultegra r8000 11s

FRONT DERAILLEUR
shimano ultegra r8000 11s

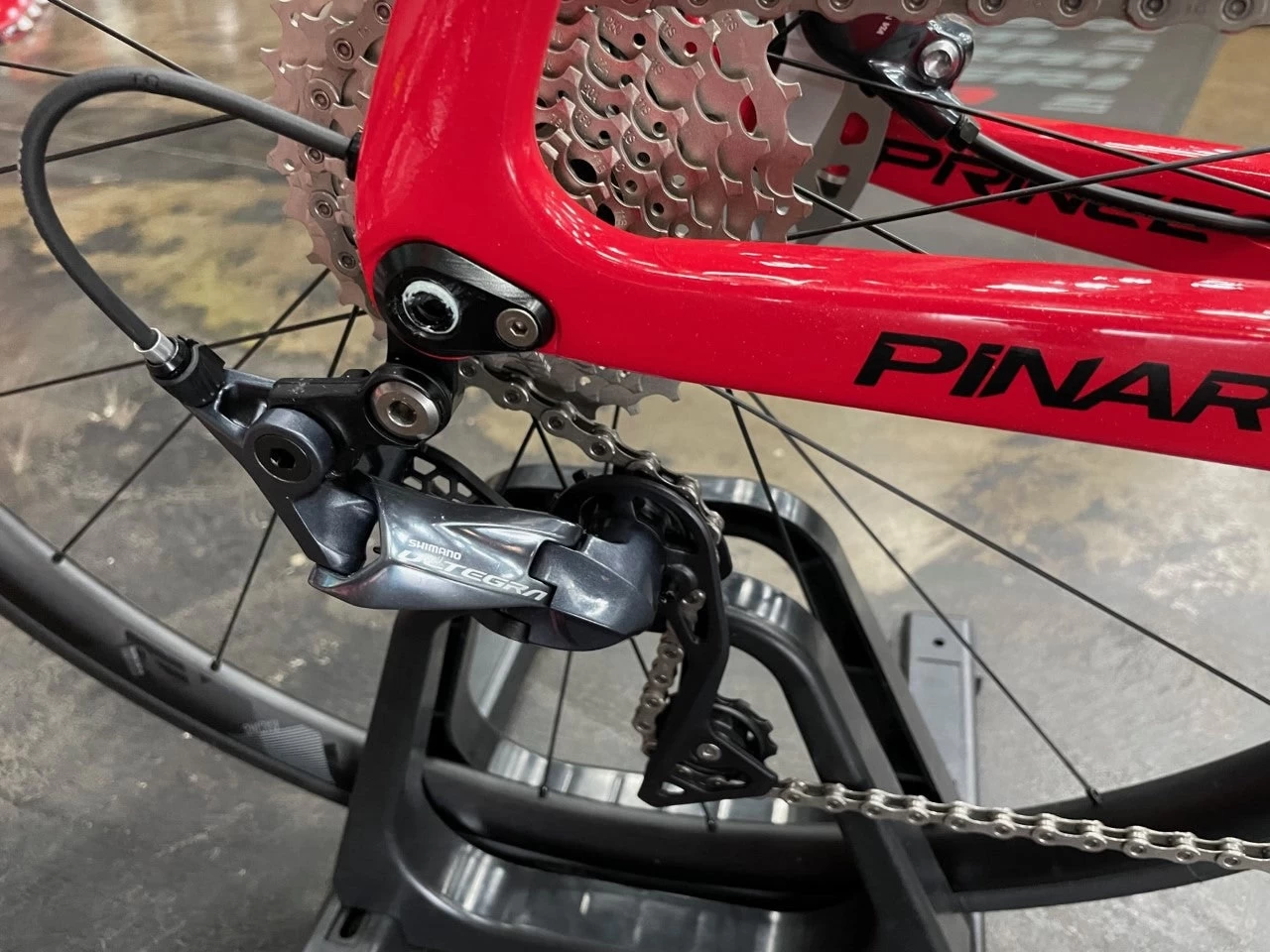

REAR DERAILLEUR
shimano ultegra r8000 11s

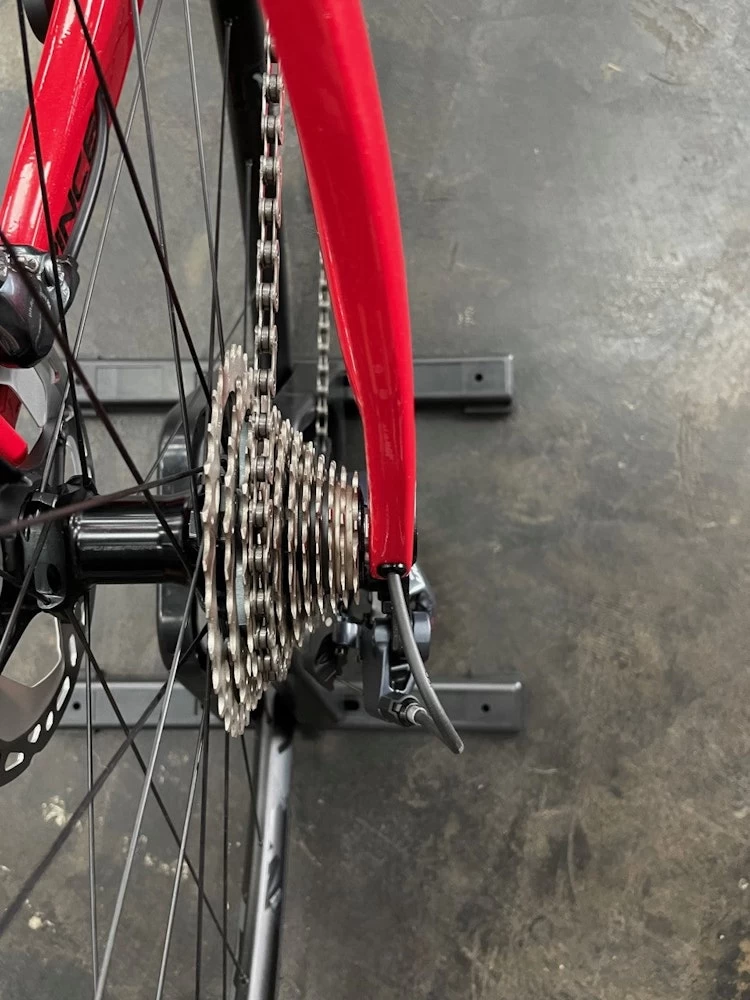

CASSETTE
shimano ultegra r8000 11s

CHAIN
shimano hg701 11s

BOTTOM BRACKET
shimano ultegra

BRAKES

FRONT BRAKE DISC
shimano ultegra r8000, 2 pistons caliper, 160mm rotor

REAR BRAKE DISC
shimano ultegra r8000, 2 pistons caliper, 140mm rotor

FRONT BRAKE RIM
shimano ultegra r8000 direct mount caliper

REAR BRAKE RIM
shimano ultegra r8000 direct mount caliper

COCKPIT

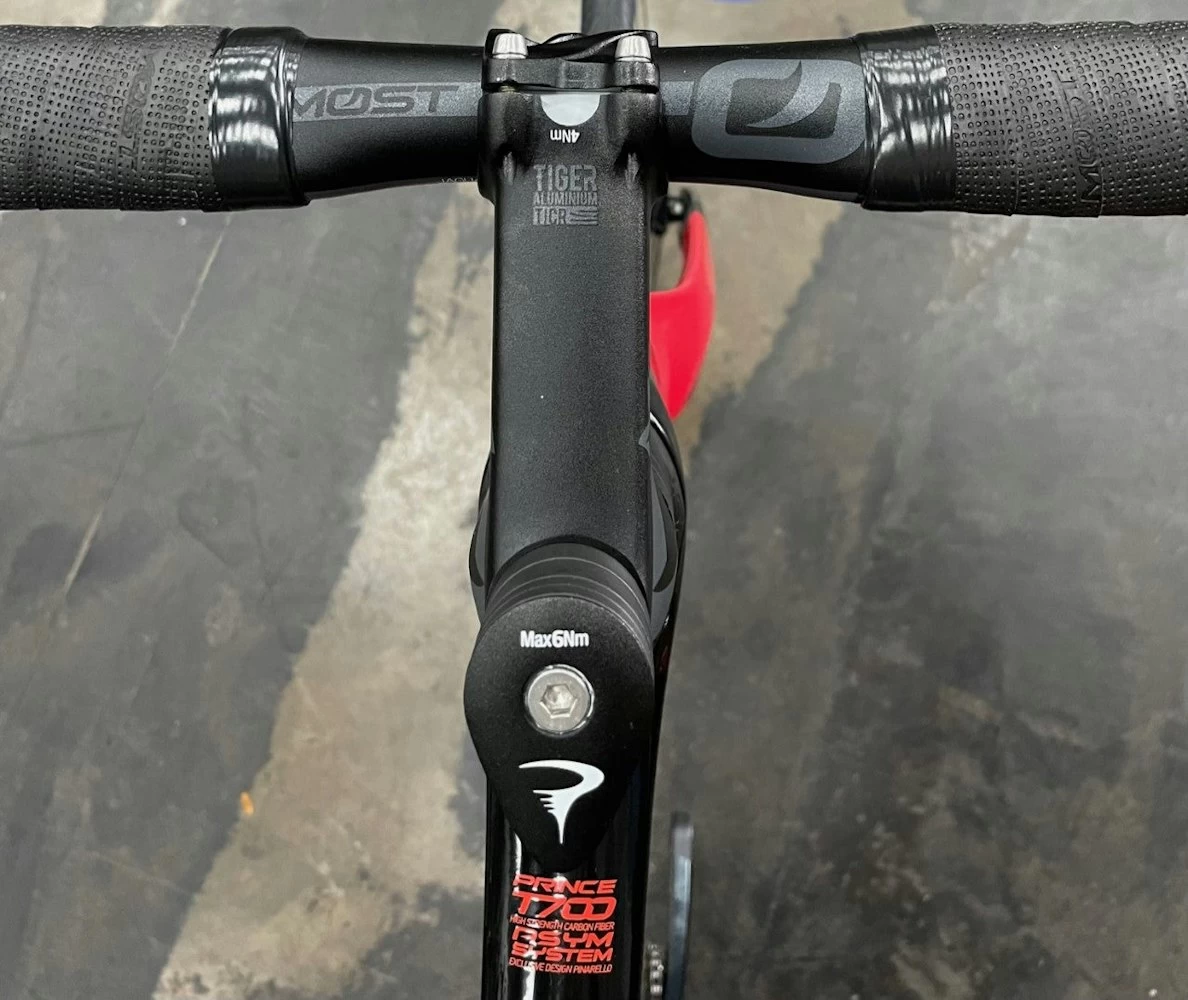

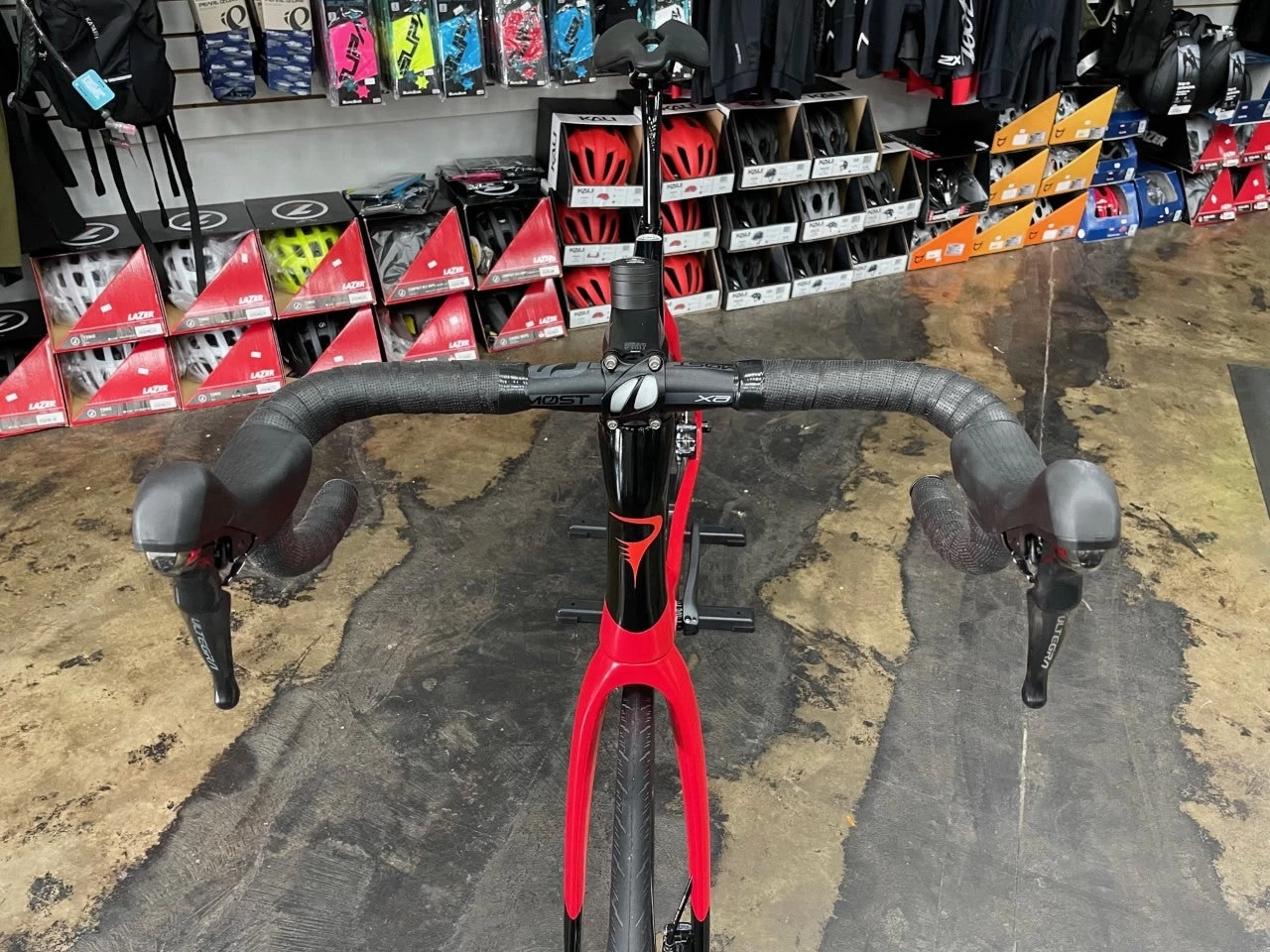

HANDLEBAR
jaguar xa aero ticr

STEM
tiger aero alu ticr

BAR TAPE
most ultragrip evo 3mm black

SADDLE
most lynx aircross fec alloy large 145mm

SEATPOST
pinarello aero seatpost with titanium bolts

SEAT CLAMP
fsc frontal seat clamp

WHEELS AND TIRES

TYRES DISC
pirelli p7 black 60 tpi nylon breaker, max tyre size 28mm (width as measured)

TYRES RIM
pirelli pzero race 26mm, black 127 tpi aramid breaker. max tyre size 28mm (width as measured)

WHEELSET DISC
flucrum racing 500

WHEELSET RIM
flucrum racing 500

AXLES DISC
pinarello axle 12×100 & 12×142, tool free removal

AXLES RIM
quick release, tool free removal
